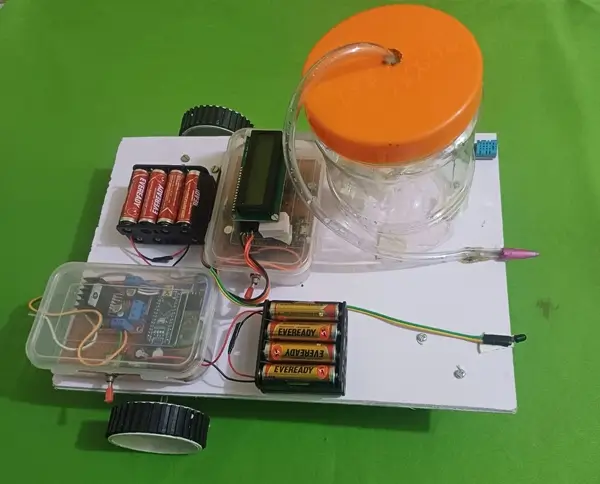

The ESP32 IoT-based Firefighter Robot is a cutting-edge project designed to enhance firefighting capabilities using advanced technology. The robot is equipped with an ESP32 microcontroller, Bluetooth HC-05 module, and various sensors to monitor gas levels, temperature, and detect flames. Additionally, it features an IoT dashboard for real-time monitoring and control. The robot can be remotely operated via Bluetooth, and the IoT dashboard provides a user-friendly interface to monitor critical parameters and control the water release mechanism based on flame detection.
Project Objectives
Remote Operation: Enable remote control of the firefighter robot through Bluetooth connectivity using the HC-05 module.
Sensor Integration: Integrate sensors to monitor gas levels, temperature, and detect flames for efficient firefighting.
IoT Dashboard: Develop a web-based dashboard for real-time monitoring of gas levels, temperature, and robot status. Include controls to turn the water release mechanism on/off.
Flame Detection: Implement a flame sensor to initiate the water release mechanism based on the presence of fire.
Safety and Efficiency: Create a system that ensures the safety of the robot's operation while maximizing firefighting efficiency.
Hardware Components
ESP32 Microcontroller: The core component responsible for processing data, controlling motors, and managing communication modules.
Bluetooth HC-05 Module: Enables wireless communication for remote operation through a dedicated mobile application.
Gas Sensor: Measures gas levels to provide early detection of potential hazards.
Temperature Sensor: Monitors the ambient temperature to assess the severity of the fire.
Flame Sensor: Detects flames, triggering the water release mechanism for firefighting.
Water Release Mechanism: A controllable water pump or valve to suppress the fire.
System Architecture
The ESP32 microcontroller serves as the brain of the firefighter robot. The Bluetooth HC-05 module establishes a connection with a mobile application for remote control. Sensors collect data on gas levels, temperature, and flame presence. The collected data is transmitted to the IoT dashboard for real-time monitoring and control.
Software Components
Microcontroller Code (ESP32): Controls robot movement, manages sensor data, and facilitates Bluetooth communication.
Mobile Application: Enables users to remotely control the robot via Bluetooth and receives real-time data from the sensors.
IoT Dashboard: Provides a user interface for monitoring gas levels, temperature, and robot status. Allows users to turn the water release mechanism on/off.
Operation
Bluetooth Remote Control: Users can control the robot's movement and functionalities remotely using a mobile application connected via Bluetooth.
Sensor Data Acquisition: Gas, temperature, and flame sensors continuously collect data and transmit it to the ESP32 microcontroller.
Flame Detection: If the flame sensor detects fire, the water release mechanism is activated automatically.
IoT Dashboard Monitoring: Users can monitor gas levels, temperature, and robot status in real-time through the IoT dashboard.
Water Release Control: The IoT dashboard allows users to manually turn the water release mechanism on/off based on the situation.
Challenges Faced
Sensor Calibration: Ensuring accurate readings from the gas, temperature, and flame sensors required meticulous calibration to enhance reliability.
Bluetooth Stability: Ensuring a stable Bluetooth connection for seamless remote control posed challenges in different environmental conditions.
Power Management: Optimizing power consumption for prolonged operation while maintaining performance was a critical consideration.
Conclusion
The ESP32 IoT-based Firefighter Robot project successfully combines robotics, IoT, and sensor technologies to create an effective firefighting tool. The integration of Bluetooth control, sensor data monitoring, and automatic water release based on flame detection enhances the robot's efficiency and safety. The project showcases the potential of technology in addressing real-world challenges and can serve as a foundation for future advancements in firefighting robotics.
Future Enhancements
Autonomous Navigation: Implementing obstacle avoidance and mapping algorithms for autonomous navigation in complex environments.
Advanced Sensor Integration: Incorporating additional sensors, such as smoke detectors and infrared cameras, to enhance situational awareness.
Machine Learning for Fire Prediction: Utilizing machine learning algorithms to predict potential fire outbreaks based on historical data and environmental conditions.
Enhanced Communication Protocols: Exploring more robust and secure communication protocols for remote control and data transmission.
Energy Harvesting: Investigating the feasibility of integrating energy harvesting mechanisms to extend the robot's operational lifespan.
